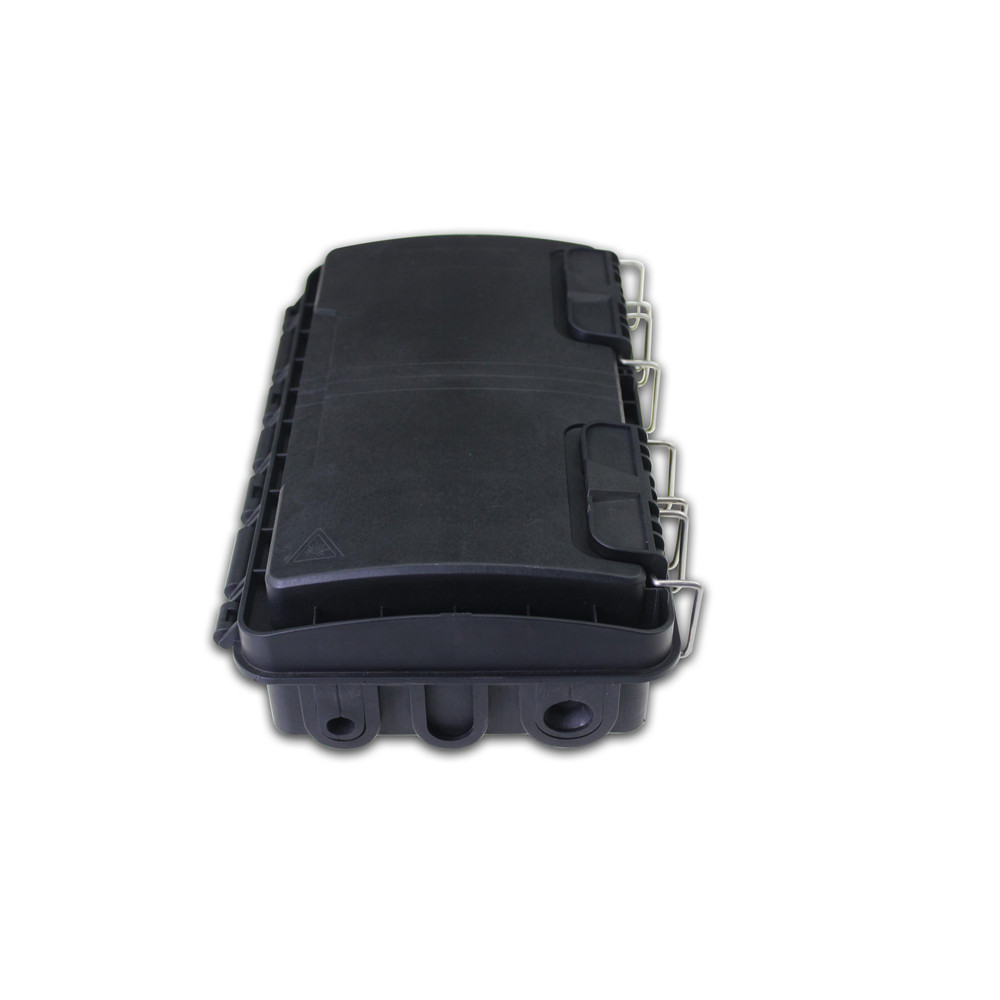

FTTH 2-72 Cores IP65 Fiber Optic Splice Closure For GPON Epon System

Name: FTTH 272 Cores IP65 Fiber Optic Splice Closure For GPON Epon System
Brand: Fongko
Price: 1 USD

Wholesale FTTH 2-72 Cores IP65 Fiber Optic Splice Closure For GPON Epon System from china suppliers

Model Number : FKAFAT-002S

Place of Origin : China

Brand Name : Fongko

MOQ : 50 Pieces

Price : Negotiatable

Type : FTTx Solutions

Network : FTTH FTTX

Product name : Fiber Optical Splice Closure

Material : high-quality impact resistant plastic

Working temperature : -40℃~+85℃

Relative humidity : ≤85%(+30℃)

Product Size/mm : 285*175*90

Color : Black

Single Weight/kg : Approx.1.9

Number Per Carton : 10PCS

Contact Now

Product Description

Aerial Fiber Access Terminal Closure

This splice closure integrates distribution and splitting in one, can realize the direct fusion and branching of the optical cable, and is suitable for the wiring connection in the optical communication equipment. Through the adapter and jumper to bring in the signal to realize optical distribution function, it is also suitable for fiber optic cables and pigtail protective connection; the unique three-tier design of the box body can be used as a fiber splitter or splice box; the flip board can be flipped ≥180°,it is more convenient to install the box or maintenance. If remove the board, it can bed as a splice closure to meet different choices.

Features

The product is made of high-quality impact resistant plastic and has a standard user interface that can be re-opened. Can accommod ate two 1x8 PLC splitter LGX module or steel tube type;
Anti-ultraviolet,anti- impact and waterproof function;

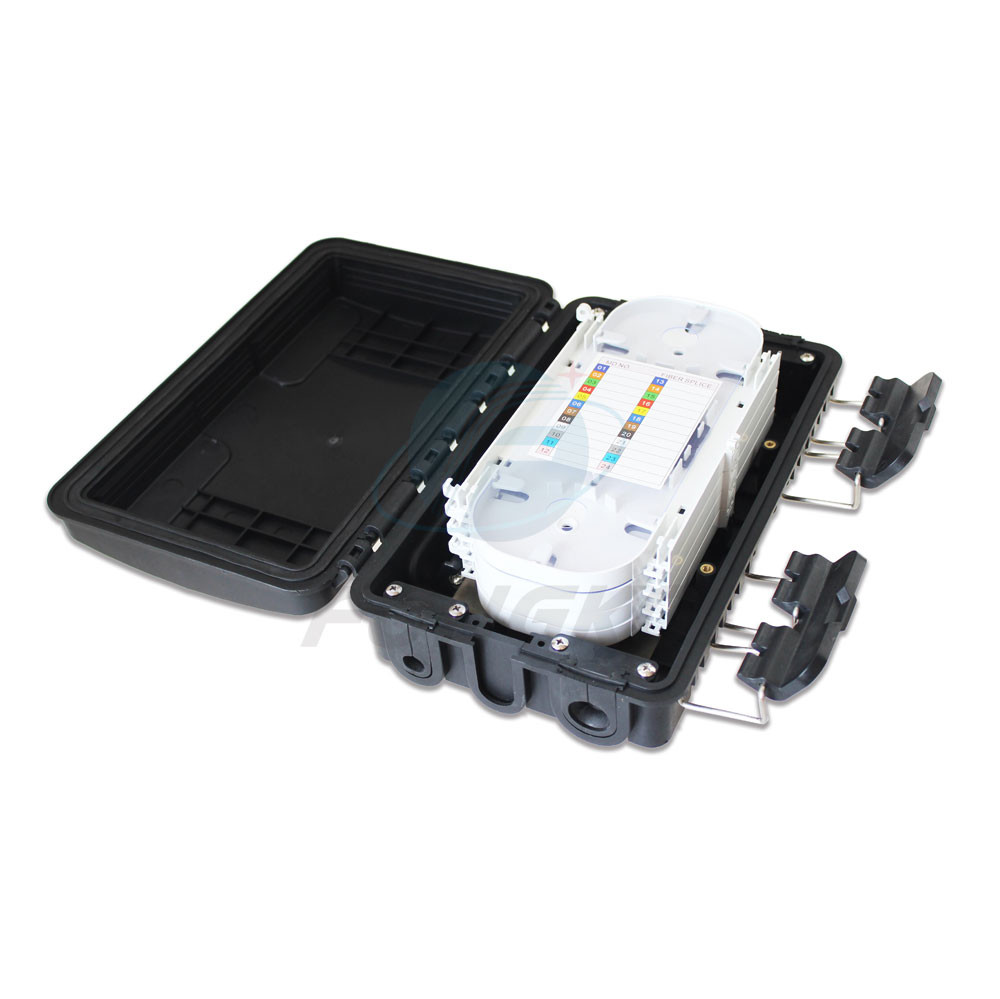

Unique flip board, flip angle ≥ 180 °, fusion area and distribution area is more obvious, reducing the cable crossing; Fiber optic cable can go in and out of the box without cut the cable.

Technical parameters

Optical fiber radius of curvature: ≥40mm

Splice tray additional loss: ≤0.1dB

Temperature range: -40°C ~ +60°C
Anti side pressure: ≥2000N/10cm

Impact resistance: ≥20N.m

Protection class: IP65

Model	AFAT-002S
Dimension (mm)	28517590
Cable diameter (mm)	Φ7-φ18
Cable port	2pcs 8-20mm round ports,4pcs 5-16mm round cable
Max. Splice tray	4PCS
Max. Fusion splice	96 cores
