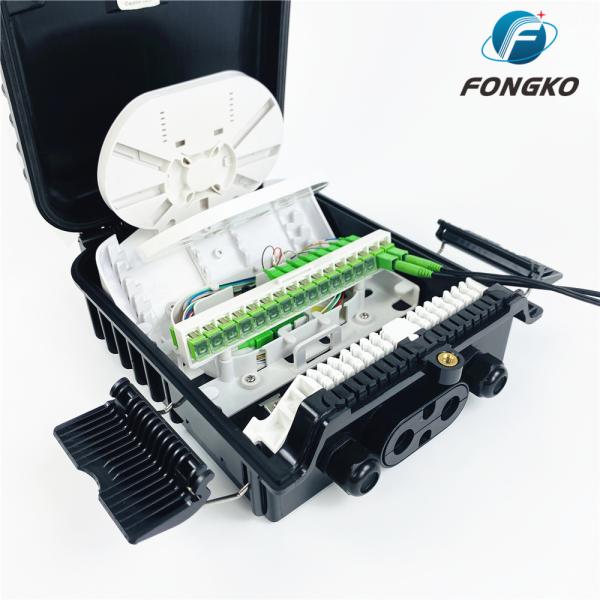

Outdoor Waterproof Black Fiber Optical Fat Ftth Splitter Box Distribution 16 Core

Name: Outdoor Waterproof Black Fiber Optical Fat Ftth Splitter Box Distribution 16 Core
Brand: FONGKO
Price: 1 USD

Wholesale Outdoor Waterproof Black Fiber Optical Fat Ftth Splitter Box Distribution 16 Core from china suppliers

Model Number : FK-A2-16T

Place of Origin : China

Brand Name : FONGKO

MOQ : 50 Pieces

Price : Negotiatable

Type : Fiber optic distribution box

Network : FTTH FTTX

Product name : Fiber Optical Splice Closure

Material : PC+ABS

Waterproof : IP65

Working temperature : -40℃~+85℃

Relative humidity : ≤85%(+30℃)

Insertion loss : ≤0.15dB

UPC return loss : ≥50dB

APC return loss : ≥60dB

Size(mm) : 290*210*82

Color : Black

Contact Now

Product Description

1, Description

The equipment is used as a termination point for the feeder cable to connect with drop cable in FTTx communication network system.
The fiber splicing, splitting, distribution can be done in this box, and meanwhile it provides solid protection and management for the FTTx network building.

2, Features

(1) Total enclosed structure.
(2) Material: PC+ABS,wet-proof,water-proof,dust-proof,anti-aging, protection level up to IP65/66.
(3) Clamping for feeder cable and drop cable, fiber splicing, fixation, storage,
distribution...etc all in one.
(4) Cable,pigtails,and patch cords are running through their own paths without disturbing each other, micro type PLC splitter inst
allation,easy maintenance.
(5) Distribution panel can be flipped up, feeder cable can be placed by expression port,easy for maintenance and installation.
(6) Box can be installed by the way of wall-mounted or poled-mounted,suitable for both indoor and outdoor use.

3, Specification

(1) Environmental requirement
Working temperature:-40℃～+85℃ Relative humidity:≤85%(+30℃) Atmospheric pressure:70KPa～106Kpa
(2) Main technical datasheet Insertion loss:≤0.15dB
UPC return loss:≥50dB APC return loss:≥60dB
(3) Thunder-proof technical datasheet
The insulation resistance between the grounding device and the metal parts of the box is no less than 2´104 MΩ/500V(DC)；IR≥2´104 MΩ/500V
The voltage resistance between the grounding device,and the box and its metal parts is no less than 3000V(DC)/min, no puncture,no flashover；U≥3000V

Configuration table	Wall mounting	Pole mounting installation
Model	16 core	16 core
Size(mm)	29021082	29021082
Material	PC/ABS	PC/ABS
Color	black	black
Inner box size(mm)	30022095	300220115
Individual weight(kg)	1.3	1.4
Outer box size(mm)	500310460	600310460
Gross weight(kg)	13.7	14.7
Outer box capacity(PCS)	10	10
Into the largest cable diameter(mm)	12	12
