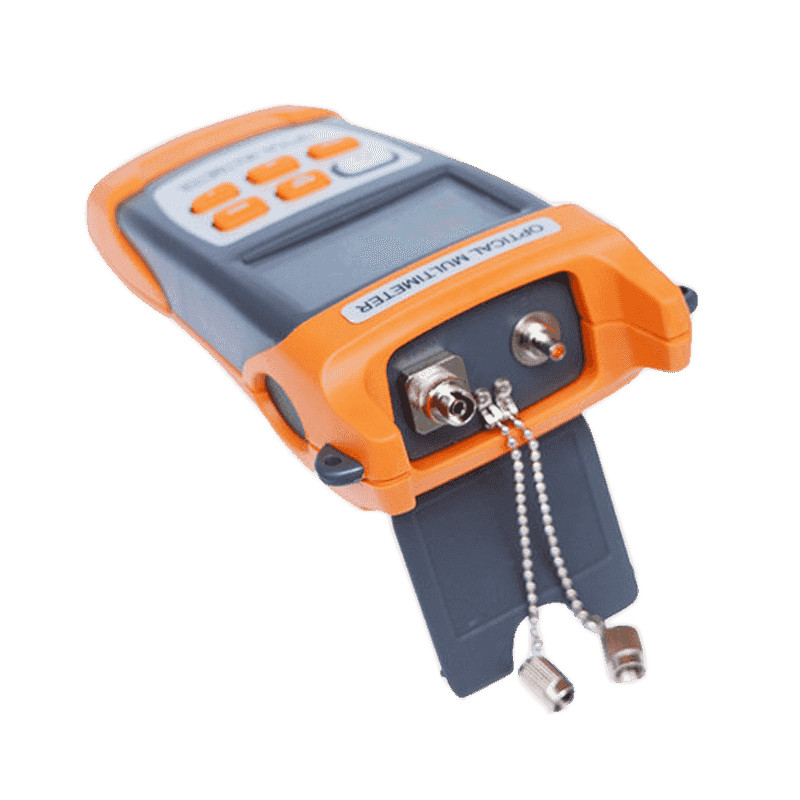

Name: OPM VFL LS Optical Fiber Multimeter Light Source SC FC ST Mini
Brand: Fongko
Price: 1 USD

Brand Name : Fongko

Model Number : FKEQU-085

Place of Origin : China

MOQ : 50 Pieces

Price : Negotiatable

Payment Terms : L/C, T/T, Western Union, MoneyGram

Product name : Optical Multumeter(OPM+LS+VFL)

Dimension(mm) : 186mmx100mmx50mm

Type : Visual Fault Locator, Testers &Tools,

Weight : 140/150g

Optical Connector : FC/SC/ST universal adaptor

Storage Temperature : -40~+70℃

Contact Now

OPM
Wavelength range	800nm~1700nm
Optical connector	FC/SC/ST
Detector type	InGaAs
Power measurement range	-70dBm~+6dBm	-50dBm~+26dBm
uncertainty	±5%
Calibration wavelength	850/980/1300/1310/1490/1550/1570/1625/1650nm
Display resolution	Linear display: 0.1%, logarithmic display: 0.01dB
Frequency Detected	270Hz/330Hz/1000Hz/2000Hz
LS
Wavelength	1310±20nm/1550nm±20nm
Laser Type	FP-LD
Output Power	≤-5dBm
Stability	±0.05dB/30min
Connector	FC/UPC
Visual fault location (optional)
Working wavelength	650nm±30nm
Output Power	2mW/10mW/30mW
Operating mode	CW/1Hz/2Hz
Optical connector	Universal joint FC/UPC
Others
Power supply	Three AA Batteries/1500mA Rechargeable Lithium Battery (optional)
Battery continuous working time	≥12h(OPM)
Auto shutdown time	10min
Operating temperature	-10°℃-+50℃
Storage temperature	-40°℃-+70℃
relative temperature	0-95％ No condensation
Size	186mmx100mmx50mm
Weight	240g
